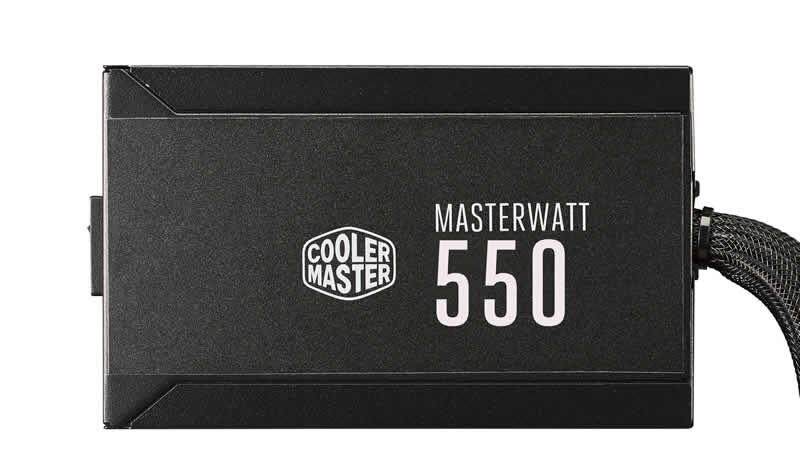

Cooler Master Power Supply Masterwatt 550

Product details of COOLER MASTER Power Supply MASTERWATT 550W (MPX-5501-AMAAB-UK)

  • MasterWatt 550
  • MPX-5501-AMAAB-UK
  • 80 PLUS Bronze Certified
  • Dual Forward and DC-to-DC circuit design
  • 16AWG cables for PCI-e cables
  • Semi-Fanless up till 15% load
  • Durable LDB bearing

Special Price MYR285.00 was MYR299.00
Availability: In stock
SKU
MPX-5501-AMAAB-UK

Product details of COOLER MASTER Power Supply MASTERWATT 550W (MPX-5501-AMAAB-UK)

  • MasterWatt 550
  • MPX-5501-AMAAB-UK
  • 80 PLUS Bronze Certified
  • Dual Forward and DC-to-DC circuit design
  • 16AWG cables for PCI-e cables
  • Semi-Fanless up till 15% load
  • Durable LDB bearing
Image result for cooler master mpx-5501-amaab-uk

The MasterWatt is an 80 Plus Bronze power supply with an innovative semi-fanless mode. Under 15% load,the MasterWatt fan remains idle,offering zero dBA. When demand for power increases,a gradual fan curve provides measured cooling with little to no noise at any output level. Dual forward / DC-to-DC topology is employed to keep the voltage stable in all conditions. For increased performance,MasterWatt is equipped with 16 AWG power cables,which reduces resistance,thereby increasing efficiency.



80 PLUS Bronze Certified

The 80 PLUS Bronze certification guarantees that MasterWatt delivers an average efficiency of 85%.



MasterWatt Infographics - 03.png



Durable LDB Bearing

  • Sealant on the bobbin and featuring the highest dustproof level IP6X

  • Sealant on the The groove outside of the bearing helps to circulate the oil

  • Recycle slot adds extra storage space for the oil

  • The shaft makes the oil flow by pumping it while spinning

  • Cooler Master 120mm Silencio FP fan combines sealed LDB bearings with quiet fan blades offering a long lifetime of quiet cooling.

Semi-Fanless up to 15% load

MasterWatt Operates at 0dB under 15% load. Experience noise-free basic computing.



MasterWatt Infographics - 02.png

Dual Forward and DC-to-DC Circuit Design

The Dual Forward and DC-to-DC circuit design offers reliability and stability.This is especially significant in +3.3V and +5V outputs.



MasterWatt Infographics - 01.png

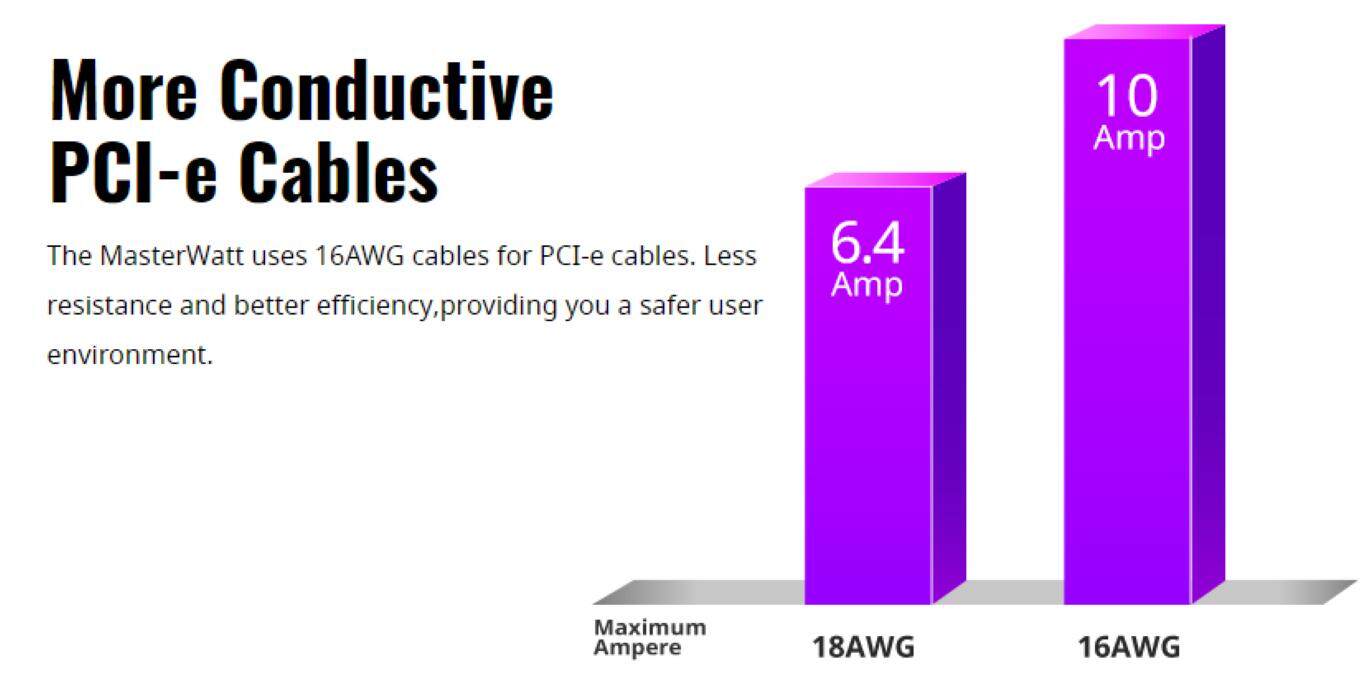

More Conductive PCI-e Cables

The MasterWatt uses 16AWG cables for PCI-e cables. Less resistance and better efficiency,providing you a safer user environment.



Specifications

  • Product Name: MasterWatt 550
  • Product Number: MPX-5501-AMAAB-UK
  • Type: ATX 12V V2.4
  • PFC: Active PFC
  • Operation Voltage: 100-240 Vac
  • Input Voltage: 100-240 Vac
  • Input Current: 8-4A
  • Input Frequency: 50-60 Hz
  • Dimensions (LxBxH): 140 x 150 x 86 mm
  • Fan Size: 120 mm
  • Fan Bearing: LDB
  • Power Good Signal: 100-500 ms
  • Hold Up Time: 16ms at 80% load
  • Efficiency: 85% @ Typical Load
  • ErP 2013 Lot 6: Yes
  • MTBF: >100,000 hours
  • Operating Temperature: 0 ~ 40°C
  • Protections: OCP / OVP / UVP / OPP / OTP / SCP
  • Regulatory: CCC, CE, TUV-RH, RCM, EAC, cTUVus, FCC, BSMI, KC, CB
  • Connectors:
    • MB 24 Pin: 1
    • CPU 12V 4+4 Pin: 1
    • SATA: 6
    • Peripheral 4 Pin: 2
    • FDD Cable 4 Pin: 1
    • PCI-e 6+2 Pin: 2
  • Warranty: 5years Local Manufacturer Warranty
